MSABEK Resilient Seated Lockable Socket Gate Valve DN100 PN16 L338 pipe D110. View specifications, applications and catalogue downloads in the tabs below.
MSABEK Resilient Seated Lockable Socket Gate Valve DN100 PN16 L338 pipe D110. Ductile iron catalogue configuration. Exact dimensions and materials are listed in the Specifications tab.

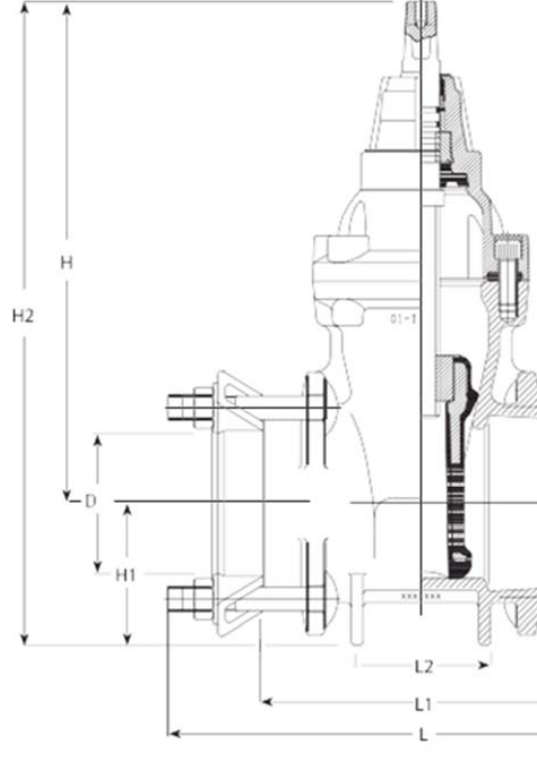

Catalogue picture represents the product family. Source: MSABEK catalogue, PDF page 105.
| Pressure rating | PN16 |
|---|---|
| DN (mm) | 100 |
| Pipe D (mm) | 110 |
| H (mm) | 334 |
| H1 (mm) | 94 |
| H2 (mm) | 428 |
| L (mm) | 338 |
| L1 (mm) | 208 |
| L2 (mm) | 90 |
| Volume (m3) | 0.01 |
| Catalogue weight (kg) | 24 |
| Material | Ductile iron |
| Body | GGG 40 / 50 |
| Wedge | GGG 40 / 50 rubber lined |
| Wedge rubber sealing | EPDM or NBR |
| Bonnet | GGG 40 / 50 |
| Stem | Stainless steel 1.4021 |
| Stem nut | Bronze |
| Stem guide bush | Bronze |
| O-rings | EPDM or NBR |
| Sliding disc | POM |
| Corrosion protection | Epoxy powder coated RAL 5015 |
| Hand wheel | Cast iron, Steel black coated |
Source: catalogue PDF page 105. Catalogue weights are reference values.
Applications are not specified in the supplied catalogue entry.
A 3D model was not supplied for this catalogue product.
